MODULAR TT-JAX ( .173" ) PANELS
JACK PANELS
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
MODULAR TT-JAX ? (.173") PANELS - BLANK SERIES TT51, TT53, TT56, TT59
215
SERIES TT56
SERIES TT59

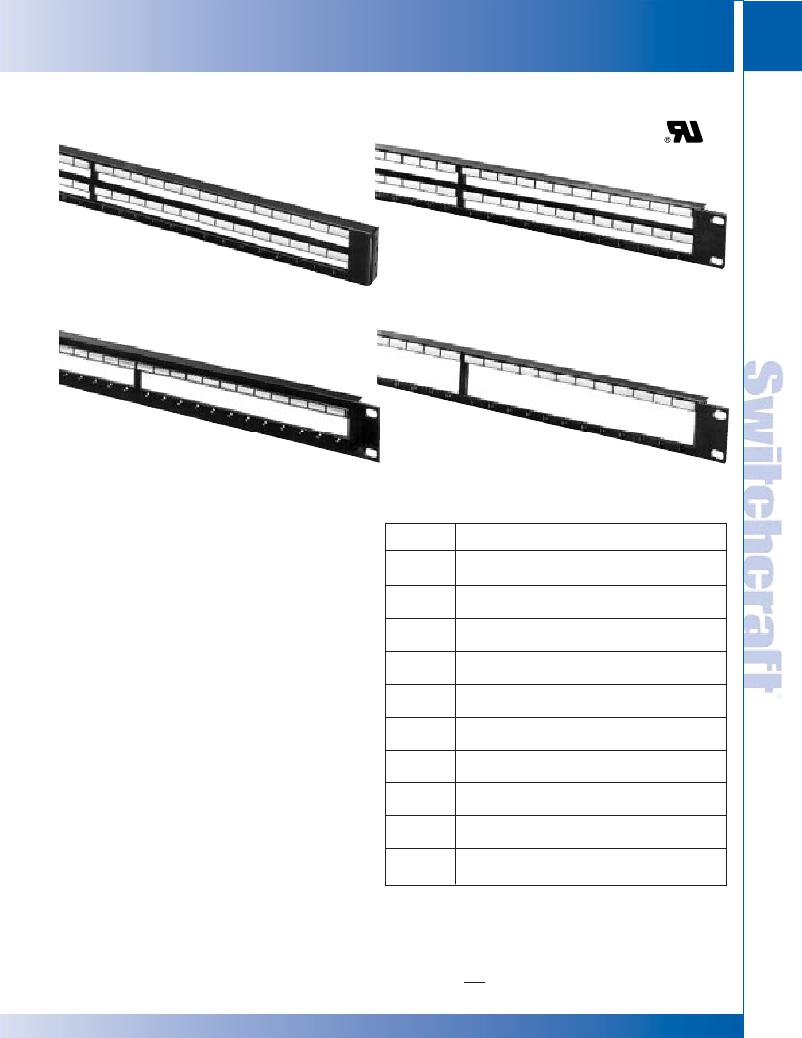

Ten series of blank panels are available in 19" and 23"
SERIES TT51
SERIES TT53
Series
widths, standard or flush mounting, and double, twin or three
row configurations. OEM’s can order blank components and
individual modules, jacks, switches and lamp jacks for
production line assembly according to standard or special
front panel configurations. Kwik-Change ? designation strips
are supplied with panels for custom legend marking.
Flush mounting styles can use extension legs (on special
order), for stand-off mounting from front of rack. Contact
Switchcraft for Mounting Bracket Kit K107.
SPECIFICATIONS
Panel and Designation Mounting Strip: Aluminum alloy,
extruded per QQ-A-200/8. Black anodized per MIL-A-8265C.
Marking Strip: Matte finish white plastic.
Designation Strip Cover: Extruded clear plastic.
SPECIFYING NOTE: Part numbers in table are for
blank panels only.
ORDERING
1. Order by part number from table
2. Refer to jack section to specify other jacks
and components.
Number 1
TT51
TT53
TT54
TT55
TT56
TT58
TT59
TT60
TT61
TT62
Description 2
19" double row standard mount panel. Mounts 96 single
jacks on 24 modules.
19" three row standard mount panel. Mounts 48 Tri-Jax ?
jacks on 24 modules.
23" three row standard mount panel. Mounts 56 Tri-Jax ?
jacks on 28 modules.
19" double row flush mount panel. Mounts 96 single
jacks on 24 modules.
23" double row flush mount panel. Mounts 112 single
jacks on 28 modules.
23" three row flush mount panel. Mounts 56 Tri-Jax ?
jacks on 28 modules.
19" twin row standard mount panel. Mounts 48 TT
Twin-Jax ? jacks on 24 modules.
23" twin row standard mount panel. Mounts 56 TT
Twin-Jax ? jacks on 28 modules.
19" twin row flush mount panel. Mounts 48 TT
Twin-Jax ? jacks on 24 modules.
23" twin row flush mount panel. Mounts 56 TT
Twin-Jax ? jacks on 28 modules.
? Special order only. Contact Switchcraft.
1. Prefix TTD for standard mounting panels indicates predrilled holes for
mounting “X Wide” vertical designation strips. See “Designation Strips” section.
2. Each panel includes integral designation mounting strip, marking strips
and clear plastic covers.
3. Contact Switchcraft for any special order items.
DIMENSIONS ARE FOR REFERENCE ONLY
